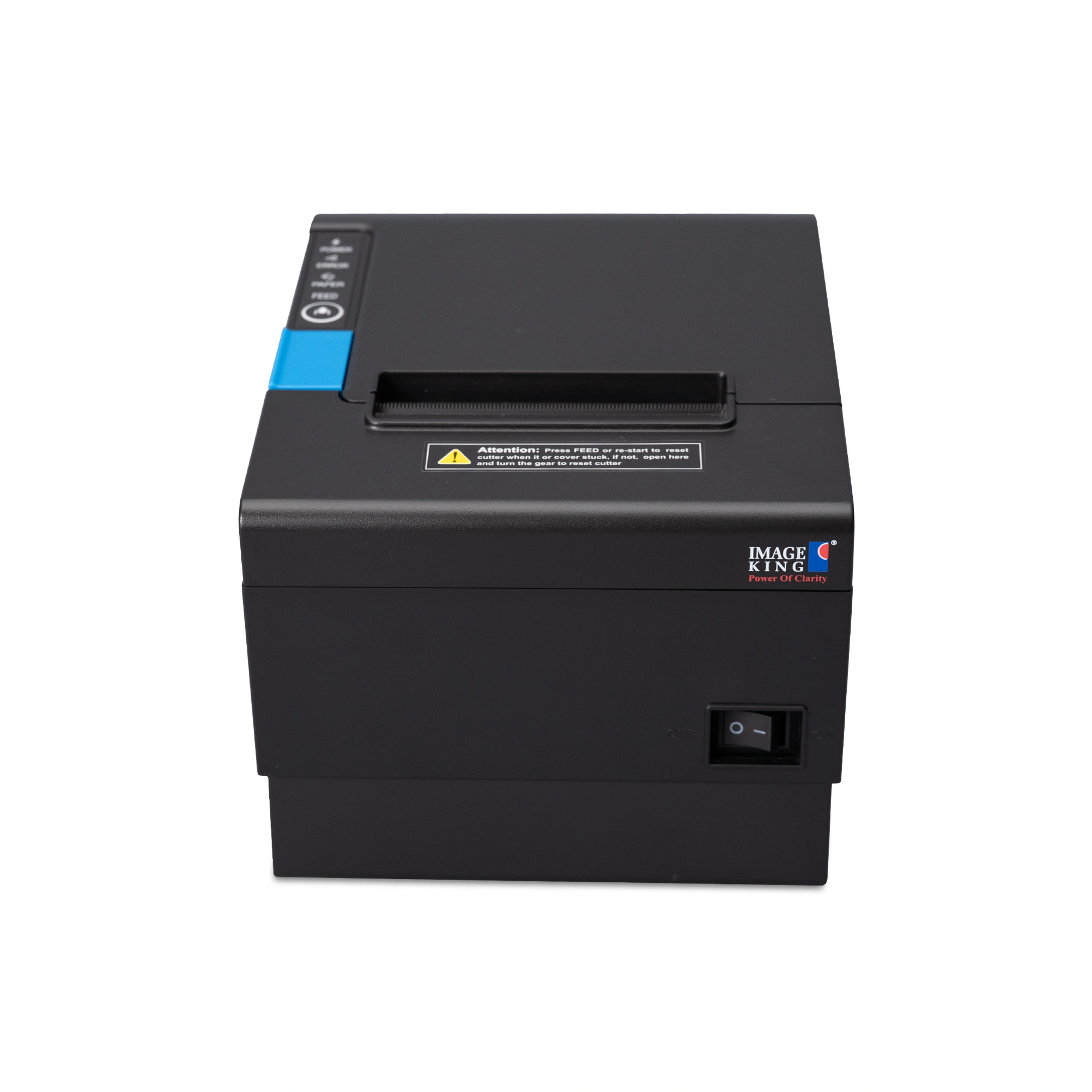

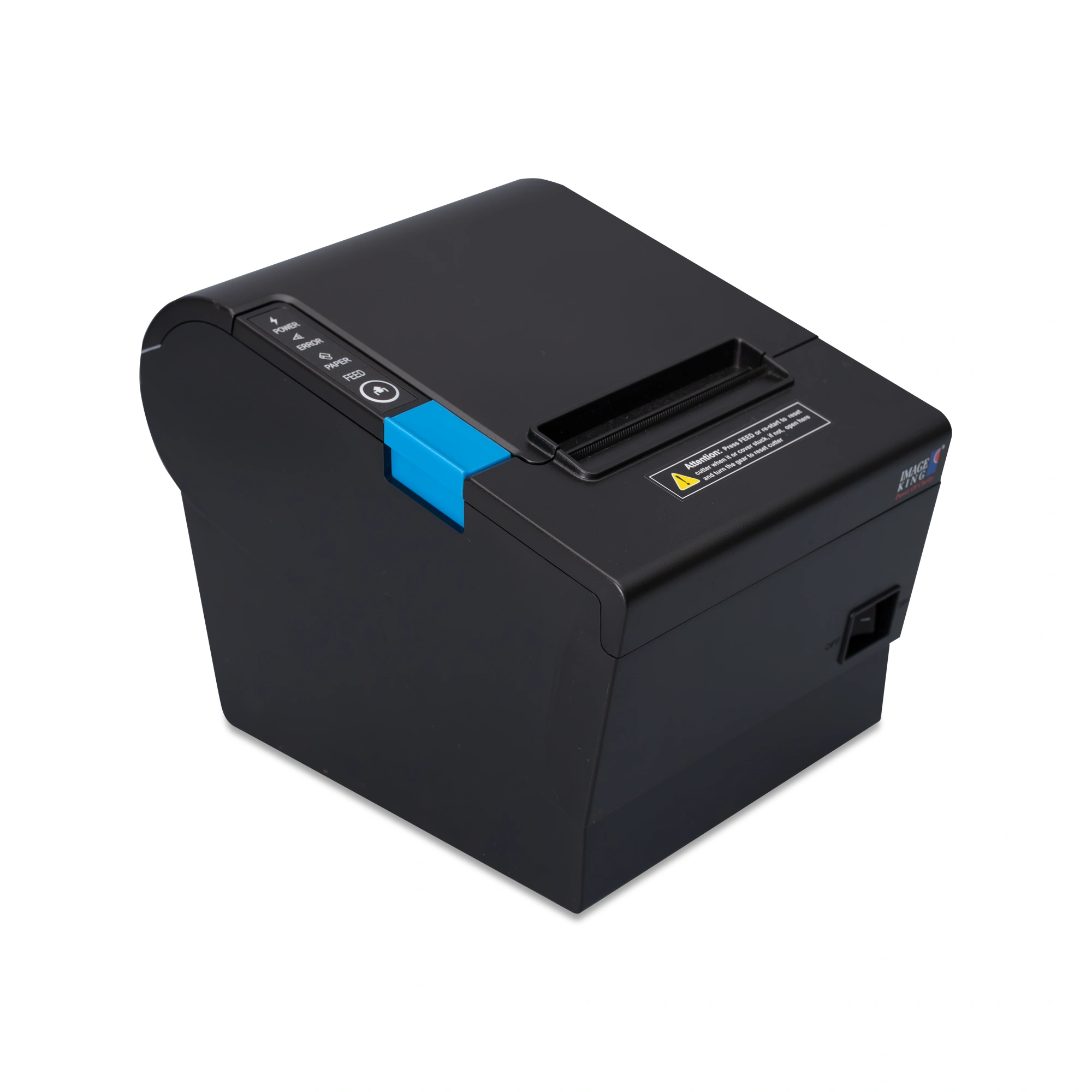

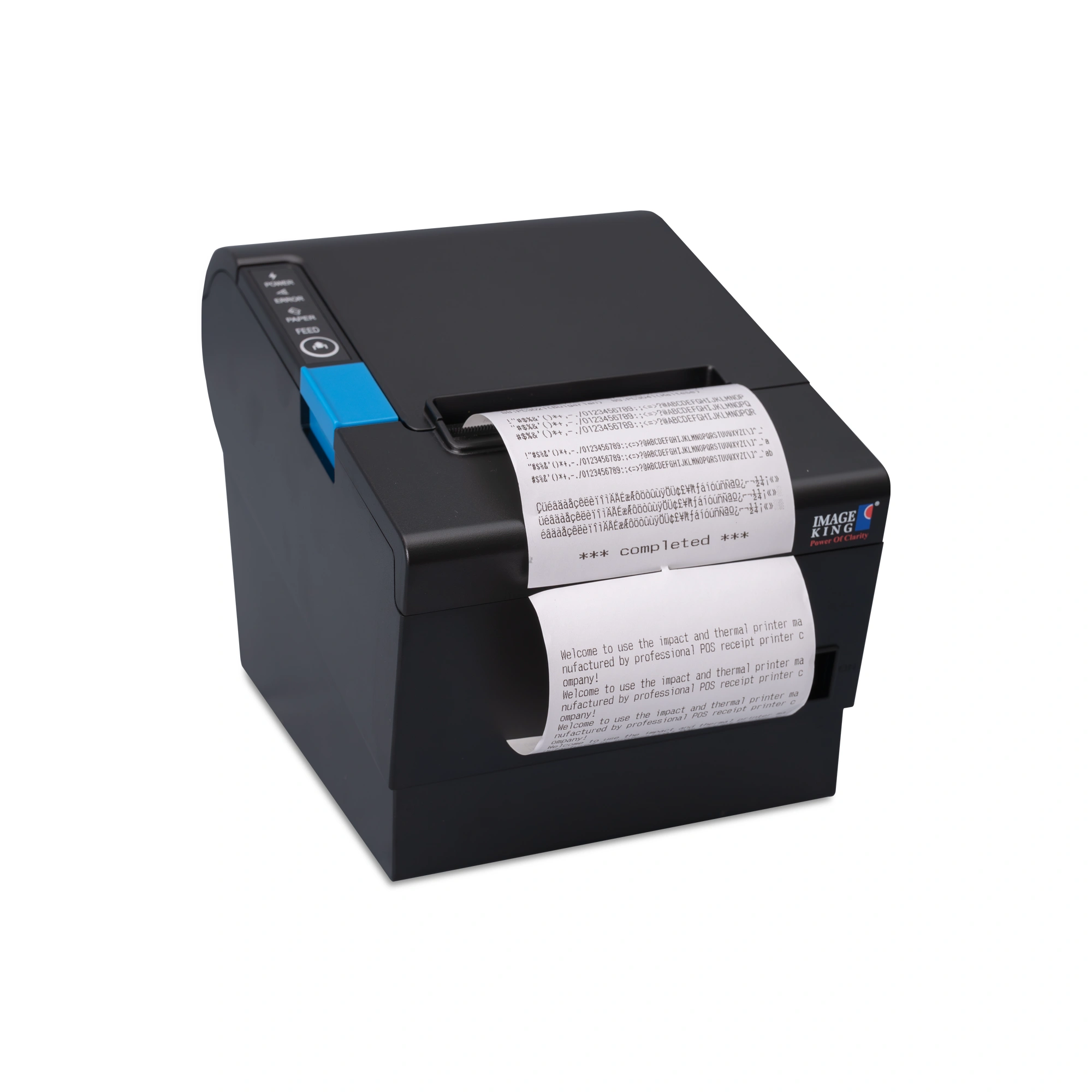

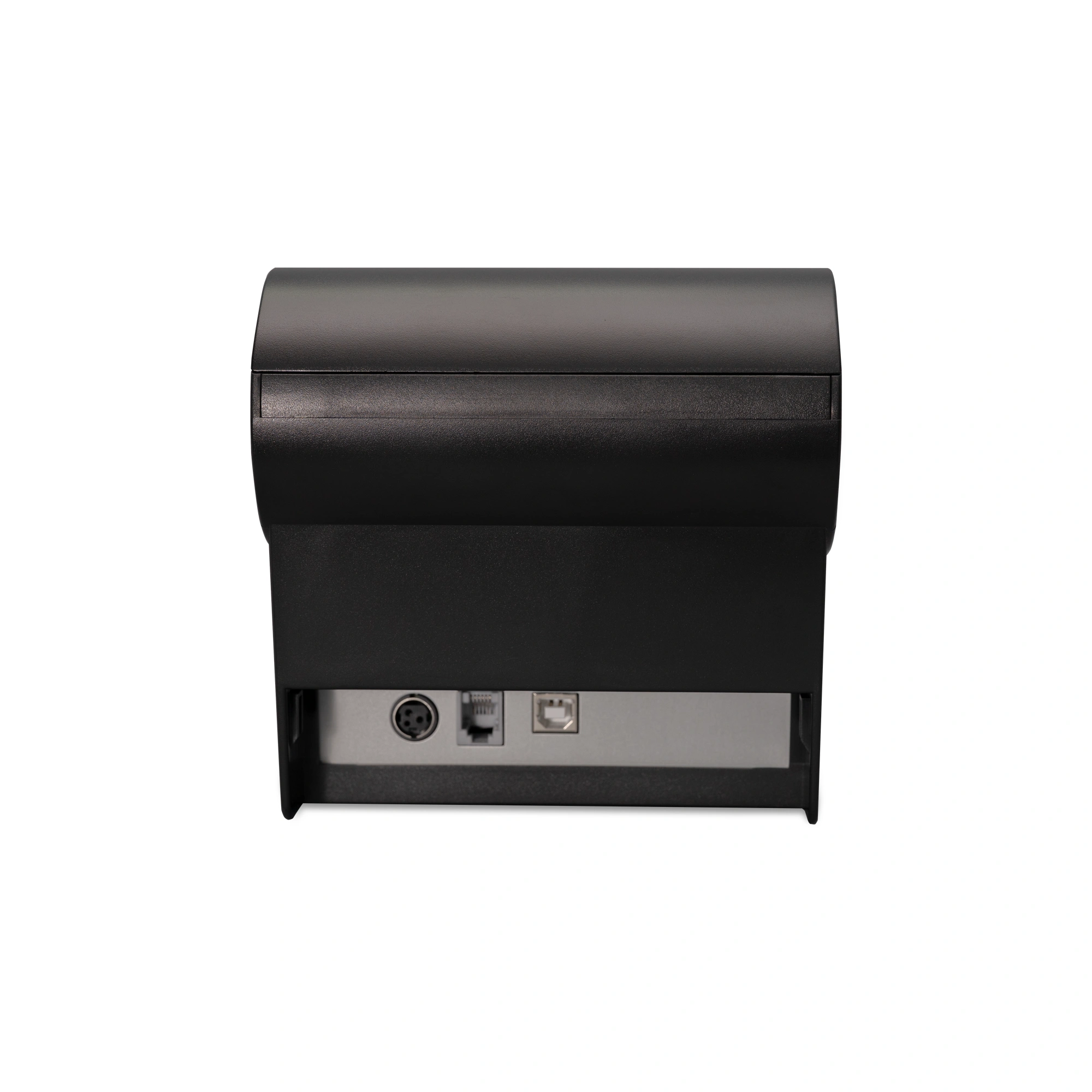

Image King Thermal Billing Printer (Model: 7K222)
In the fast-paced world of retail and hospitality, your billing solution needs to be swift, reliable, and adaptable. Enter the Image King Thermal Billing Printer (Model: 7K222)—a powerhouse designed to meet the demands of modern businesses. With lightning-fast print speeds of up to 300 mm/s, this printer ensures that your transactions are processed without delay, enhancing customer satisfaction and operational efficiency. Its direct thermal printing technology eliminates the need for ink or ribbons, reducing maintenance costs and downtime. The printer’s compact design, weighing just 1.0 kg, makes it an ideal fit for space-constrained environments. Whether you’re operating a bustling restaurant, a retail store, or a service center, the 7K222 delivers crisp, clear receipts that reflect your commitment to quality and professionalism.
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
Seamless WiFi & LAN Connectivity
Enjoy wireless printing without limits. Connect effortlessly via WiFi or LAN and print directly from PCs, laptops, or mobile devices.
18 Pages Per Minute Output
Stay ahead of deadlines with a robust 18 PPM print speed. Ideal for fast-paced environments, this printer means business.
Compatible with Toner Cartridge 12A
Print more, spend less. Works with high-yield 12A toner cartridges, delivering sharp prints and cost-effective output every time.
SPECIFICATIONS
- Printing Method: Direct Thermal
- Print Speed: Up to 300 mm/s
- Paper Width: 80mm | 58mm / 80mm
- Column Capacity: 576 dots/line or 512 dots/line
- Line Spacing: 3.75mm (Adjustable by commands)
- Character Size: Font A: 1.5×3.0mm (12×24 dots), Font B: 1.1×2.1mm (9×17 dots)
- Interfaces: USB/USB+Lan (Optional: BT/WiFi); | USB+Serial+Lan | USB+Serial+Lan | USB+Serial; (Optional:BT/WiFi) | Optional:BT/WiFi)
- Input Buffer: USB / USB+Serial: 96 Kbytes, USB+LAN: 256 Kbytes
- Column number: 80mm paper: Font A-42 columns or 48 columns/Font B – 56 columns or 64 columns/ Simplified/Traditional Chinese – 21 columns or 24 columns
- Character size: ANK, Font A: 1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm (9×17 dots) Simplified/Traditional Chinese: 3.0×3.0mm (24×24 dots)
- Weight: 1.0 kg
- Extension character sheet: PC347 (Standard Europe) / Katakana / PC850 (Multilingual) / PC860 (Portugal) / PC863 (Canadian) / PC865 (Nordic) / West Europe / Greek / Hebrew/ East Europe / Iran/WPC1252/PC866 (Cyrillic #2) / PC852 (Latin2)/PC858/Iranil/ Latvian / Arabic/PT151 (1251) UPC-A/UPC-E/JAN13 (EAN13)/JAN8
- 1D Barcode: Flash(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
- 2D Barcode: QR CODE | QR CODE/PDF417 | QR CODE/PDF417
- Input buffer: USB / USB+Serial: 96 Kbytes, USB+Lan: 256 Kbytes | 256 Kbytes | 4096 Kbytes

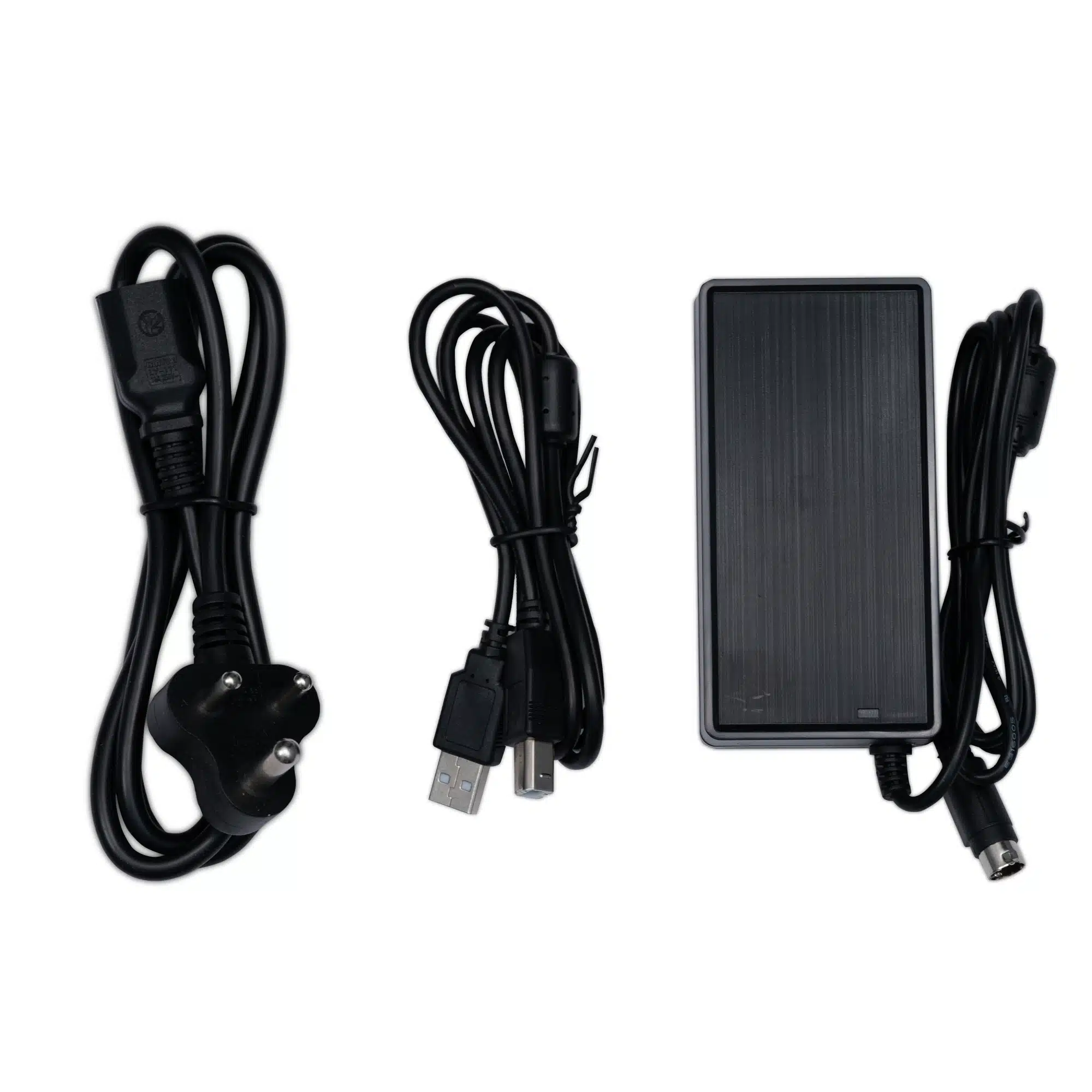

- Power adaptor: Input- AC 100~240V, 50~60Hz
- Printer Input: DC 24V/2.5A
- Cash drawer: DC 24V/1A
- Weight: 1.0 kg
- Dimensions: 194.5x145x146.4mm
- Work environment: Temperature (0~45°C) humidity (10~80%)
- Storage environment: Temperature (-10~60°C) humidity (10~90%)
- Auto cutter: Parital
- Cutter life: 1.5 million cuts
- Printer head life: 150km
- Emulation: ESC/POS
- Driver: Windows/JPOS/Linux/OPOS/Android/Mac
- Utility: Windows & Linux test Utility
- SDK: iOS, Android, Windows
