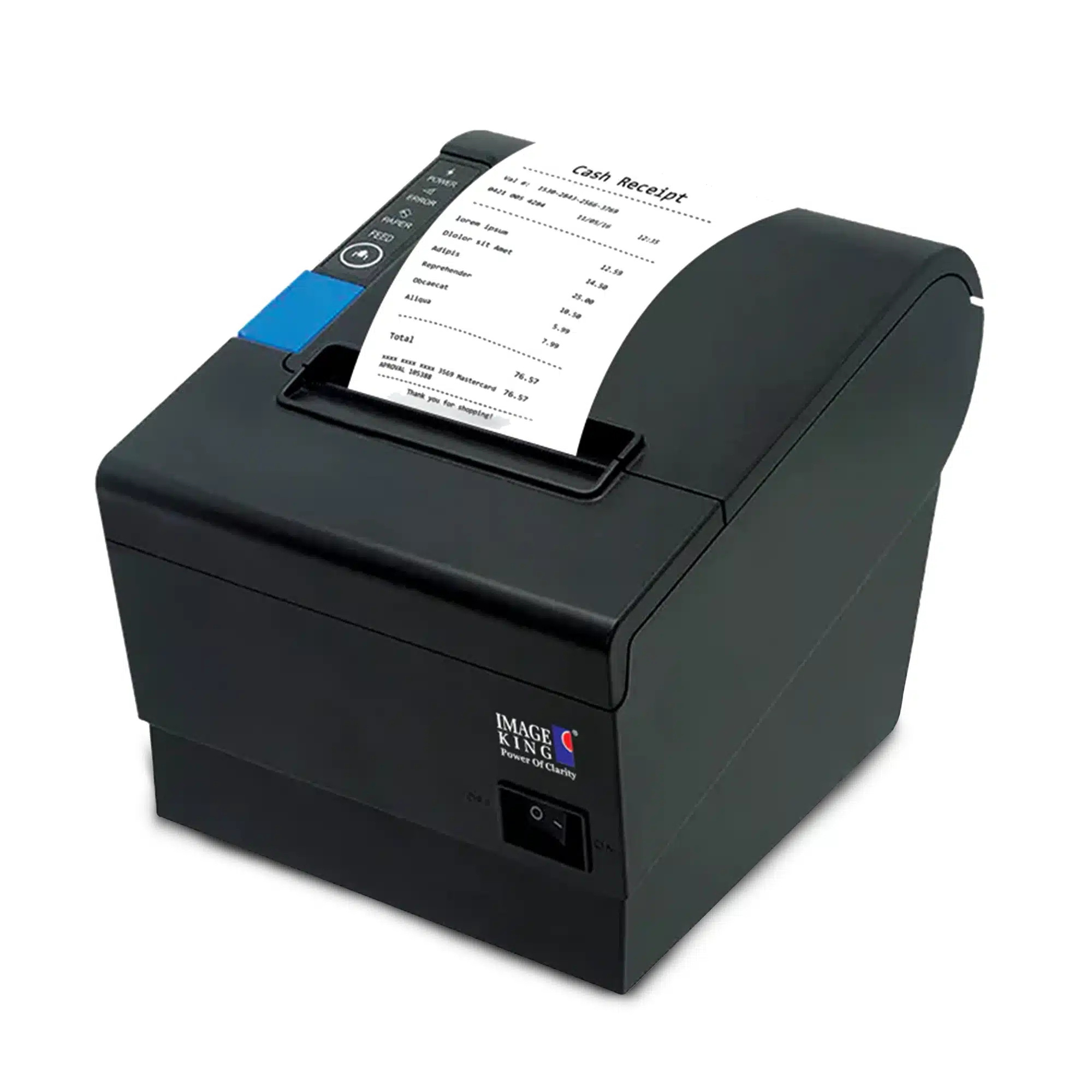

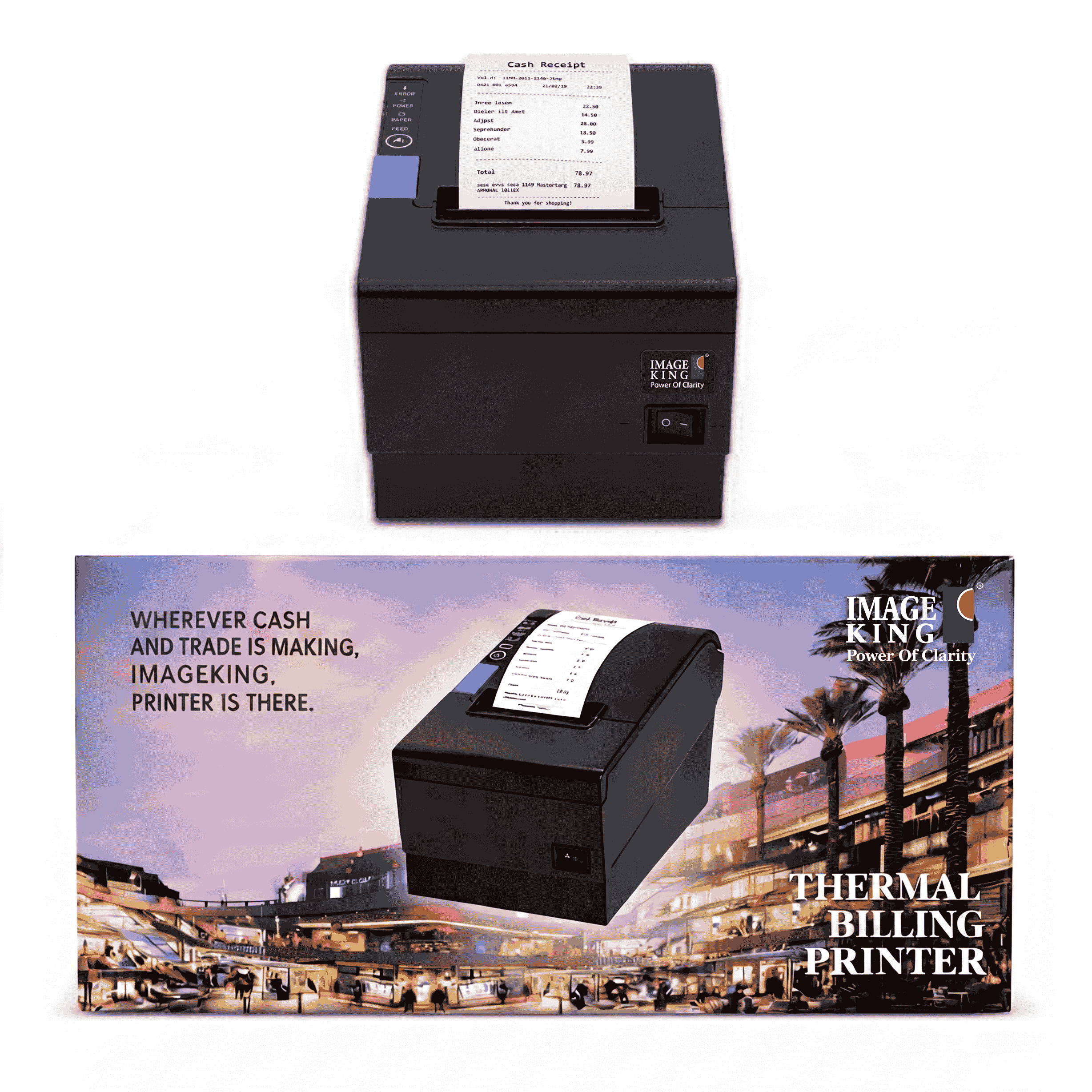

Image King Thermal Billing Printer (Model: 7K222) – Version 2
The IMAGE KING Thermal Billing Printer 7K222 (Version 2) is built for high-volume retail and hospitality environments that demand fast, reliable, and cost-efficient billing. With print speeds of 230 mm/s, 260 mm/s, and 300 mm/s, this POS thermal printer ensures ultra-quick receipt generation during peak hours. Its direct thermal printing eliminates ink and ribbon costs, while the compact build fits seamlessly into any billing counter. Designed for supermarkets, restaurants, pharmacies, and service outlets, the 7K222 delivers crisp, clear receipts, supports multiple connectivity options like USB, LAN, Serial, BT/WiFi, and offers strong durability with a 1.5 million-cut auto cutter and 150 km print head life. A perfect choice for businesses seeking high-speed thermal printing, efficient POS billing, and long-term reliability.
FEATURES
SPECIFICATIONS
DOWNLOAD
FEATURES
Reliable Page Yield
Prints up to 2,000 pages, ideal for consistent, daily use across office environments.
Superior Print Clarity
Delivers professional-grade results with every page—sharp text and defined lines.
Refill-Ready Design
Compatible with toner refill powder and cartridge toner powder for extended, efficient use.
SPECIFICATIONS
- Printing Method: Direct Thermal
- Print Speed: 230 mm/s | 260 mm/s | 300 mm/s
- Paper Width: 80mm | 58mm / 80mm
- Column Capacity: 576 dots/line or 512 dots/line
- Interface: USB / USB+LAN (Optional: BT/WiFi) | USB+Serial+LAN | USB+Serial | Optional BT/WiFi
- Line Spacing: 3.75mm (Adjustable by commands)
- 80mm Paper: Font A: 42 or 48 columns, Font B: 56 or 64 columns
- Simplified/Traditional Chinese: 21 or 24 columns
- Character Size: ANK Font A: 1.5 × 3.0 mm (12 × 24 dots), ANK Font B: 1.1 × 2.1 mm (9 × 17 dots), Simplified/Traditional Chinese: 3.0 × 3.0 mm (24 × 24 dots)
- Weight: 1.0 kg
- Extension Character Sheet: PC347 (Standard Europe) / Katakana / PC850 (Multilingual) / PC860 (Portugal) / PC863 (Canadian) / PC865 (Nordic) / West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 / PC866 (Cyrillic #2) / PC852 (Latin2) / PC858 / Iranil / Latvian / Arabic / PT151 (1251)
- Barcodes 1D: Flash (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
- Barcodes 2D: QR Code | QR Code / PDF417
- Input Buffer: USB / USB+Serial: 96 Kbytes, USB+LAN: 256 Kbytes | 256 Kbytes | 4096 Kbytes
- Power Adapter: Input AC 100–240V, 50–60Hz
- Printer Input: DC 24V / 2.5A
- Cash Drawer: DC 24V / 1A
- Dimensions: 194.5 × 145 × 146.4 mm
- Work Environment: Temperature 0–45°C | Humidity 10–80%
- Storage Environment: Temperature -10–60°C | Humidity 10–90%
- Auto Cutter: Partial
- Cutter Life: 1.5 million cuts
- Printer Head Life: 150 km
- Emulation: ESC/POS
- Driver: Windows / JPOS / Linux / OPOS / Android / Mac
- Utility: Windows & Linux Test Utility
- SDK: iOS / Android / Windows
